Graphs

Graph traversal

Breadth First Search

visit all

Depth First Search

Connected components, bridges, articulations points

Finding Connected Components

Finding Bridges in O(N+M)

find bridges in graph in linear time
leetcode
explanation

key: track entry times in array tin, and compute array low low[s] is minimum of:

- entry time in s
- entry time in all descendants u of s which are back edges
- `low[u]` for all u where $(s,u)$ is tree edge

CODE

def bridges(n, adj_mat) -> List[List[int]]:
    def dfs(s,p):
        nonlocal t
        visited.add(s)
        t += 1
        low[s] = tin[s] = t
        for u in adj_mat[s]:
            if u not in visited:
                dfs(u,s)
                low[s] = min(low[s],low[u])
                if low[u] > tin[s]:
                    res.append([s,u])
            elif u != p:
                low[s] = min(low[s],tin[u])
    res,visited = [],set()
    t,low,tin = 0,[float('inf')]*n,[float('inf')]*n
    for s in range(n):
        if s not in visited:
            dfs(s,-1)
    return res

Finding Bridges Online

Finding Articulation Points in $O(N+M)$

CODE

def articulation_point(adj):
    def dfs(s,p):
        nonlocal t
        visited.add(s)
        t += 1
        tin[s] = low[s] = t
        children = 0
        for u in adj[s]:
            if u not in visited:
                dfs(u,s)
                low[s] = min(low[s],low[u])
                if low[u] >= tin[s] and p!=-1: # \geq !
                    art.append(s)
                children += 1
            elif u != p:
                low[s] = min(low[s],tin[u])
        if children != 1 and p==-1:
            art.append(s)
    t,visited = 0, set()
    tin,low,art = {},{},[]
    for s in adj:
        if s not in visited: dfs(s-1)
    return art != []

malware spread; can be solved using simple dfs/bfs for each node in $O(N^3)$ , use articulation points $O(N^2)$ , DSU $O(N^2)$

Strongly Connected Components and Condensation Graph

Strong Orientation

Single-source shortest paths

Dijkstra - finding shortest paths from given vertex

def dijkstra(s):
    h = [(0,s)]
    dist,parent = {s:0},{}
    while h:
        d,s = heappop(h)
        for u,du in adj[s]:
            if dist.get(u,inf) > du+d:
                dist[u] = du+d
                parent[u] = s
                heappush(h,(dist[u],u))
    return dist,parent

First loop on k, otherwise it will error. k is the phase count.

Dijkstra on sparse graphs

Bellman-Ford - finding shortest paths with negative weights

0-1 BFS

D´Esopo-Pape algorithm

All-pairs shortest paths

Floyd-Warshall - finding all shortest paths

NB: Order of the loops is important. MUST START WITH K that is the phase.

Given a directed or an undirected weighted graph $G$ with $n$ vertices. The task is to find the length of the shortest path $d_{ij}$ between each pair of vertices $i$ and $j$ .

The graph may have negative weight edges, but no negative weight cycles.

The key idea of the algorithm is to partition the process of finding the shortest path between any two vertices to several incremental phases.

Let us number the vertices starting from 1 to $n$ . The matrix of distances is $d[ ][ ]$ .

Before $k$ -th phase ( $k = 1 \dots n$ ), $d[i][j]$ for any vertices $i$ and $j$ stores the length of the shortest path between the vertex $i$ and vertex $j$ , which contains only the vertices $\{1, 2, ..., k-1\}$ as internal vertices in the path.

In other words, before $k$ -th phase the value of $d[i][j]$ is equal to the length of the shortest path from vertex $i$ to the vertex $j$ , if this path is allowed to enter only the vertex with numbers smaller than $k$ (the beginning and end of the path are not restricted by this property).

It is easy to make sure that this property holds for the first phase. For $k = 0$ , we can fill matrix with $d[i][j] = w_{i j}$ if there exists an edge between $i$ and $j$ with weight $w_{i j}$ and $d[i][j] = \infty$ if there doesn't exist an edge.

Suppose now that we are in the $k$ -th phase, and we want to compute the matrix $d[ ][ ]$ so that it meets the requirements for the $(k + 1)$ -th phase. We have to fix the distances for some vertices pairs $(i, j)$ . There are two fundamentally different cases:

The shortest way from the vertex $i$ to the vertex $j$ with internal vertices from the set $\{1, 2, \dots, k\}$ coincides with the shortest path with internal vertices from the set $\{1, 2, \dots, k-1\}$ .

In this case, $d[i][j]$ will not change during the transition.
The shortest path with internal vertices from $\{1, 2, \dots, k\}$ is shorter.

This means that the new, shorter path passes through the vertex $k$ . This means that we can split the shortest path between $i$ and $j$ into two paths: the path between $i$ and $k$ , and the path between $k$ and $j$ . It is clear that both this paths only use internal vertices of $\{1, 2, \dots, k-1\}$ and are the shortest such paths in that respect. Therefore we already have computed the lengths of those paths before, and we can compute the length of the shortest path between $i$ and $j$ as $d[i][k] + d[k][j]$ .

for (int k = 0; k < n; ++k) {
    for (int i = 0; i < n; ++i) {
        for (int j = 0; j < n; ++j) {
            d[i][j] = min(d[i][j], d[i][k] + d[k][j]);
        }
    }
}

Number of paths of fixed length / Shortest paths of fixed length

Spanning trees

Minimum Spanning Tree - Prim's Algorithm
Minimum Spanning Tree - Kruskal
Minimum Spanning Tree - Kruskal with Disjoint Set Union
Second best Minimum Spanning Tree - Using Kruskal and Lowest Common Ancestor
Kirchhoff Theorem
Prüfer code

Cycles

Checking a graph for acyclicity and finding a cycle in O(M)

nonlocal variables cycle and visited
keep path variable tracing the dfs
CLRS and CP algo use coloring, white, gray, black and nonlocal cycle variable (i think we cannot avoid nonlocal stuff)
NB!!! below is for cycle in directed graph, for undirected need to keep parent pointers and make sure you when you go back to parent you don't consider it as cycle

CODE

def dfs(s,path):
    nonlocal cycle
    visited.add(s)
    for u in adj[s]:
        if u not in visited:
            dfs(u,path|{u})
        elif u in path:
            cycle = True
            return
cycle,visited = False,set()
for s in range(n):
    if s not in visited:
        dfs(s,set([s]))
print(cycle)

To get the nodes in the cycle you might keep a parent dictionary and do a while loop instead of marking cycle = True
Alternatively there is this trick to get the cycle nodes:

CODE

# step 1: backtracking DFS to find the cycle
circle = []
vis = set()

def find_circle(node, par):
    if node in vis:
        return (True, node)
    for nei in g[node]:
        if nei == par: continue
        vis.add(node)
        circle.append(node)
        status, res = find_circle(nei, node)
        if status: return status, res
        circle.pop()
        vis.remove(node)

    return False, None


_, node = find_circle(0, None)
# get the circle from start "node"
circle = circle[circle.index(node):]

#QED

Finding a Negative Cycle in the Graph

Eulerian Path

Euler path

Eulerian Path is a path in a graph that visits every edge exactly once.

leetcode

def hierholzer_recursive(graph):
    def visit(vertex, circuit):
        while graph[vertex]:
            next_vertex = graph[vertex].pop()
            visit(next_vertex, circuit)
        circuit.append(vertex)

    circuit = []
    start_vertex = list(graph.keys())[0]
    visit(start_vertex, circuit)
    circuit.reverse()
    return circuit

To properly initialize the start vertex in the recursive version of Hierholzer's algorithm, you can modify the code to select a vertex with an odd degree (if one exists) as the starting point. This ensures that the algorithm will find an Eulerian circuit if one exists in the graph.

Lowest common ancestor

Lowest Common Ancestor

Given a tree $G$ find the lowest common ancestor of two nodes $(u,v)$ . If you have to do just once it is easy, see lca

CODE

def lca(root, p, q):
    if not root or root == p or root == q:
        return root
    l,r = lca(root.left),lca(root.right)
    if l and r: return root
    return l if l else r

More interesting is when you have queries $(u_i,v_i)$ . Note lca lies on shortest path.

Hamiltonian path

A Hamiltonian path or traceable path is a path that visits each vertex of the graph exactly once. A graph that contains a Hamiltonian path is called a traceable graph.

Whether Hamiltonian path exists in a graph or not is NP-complete problem.

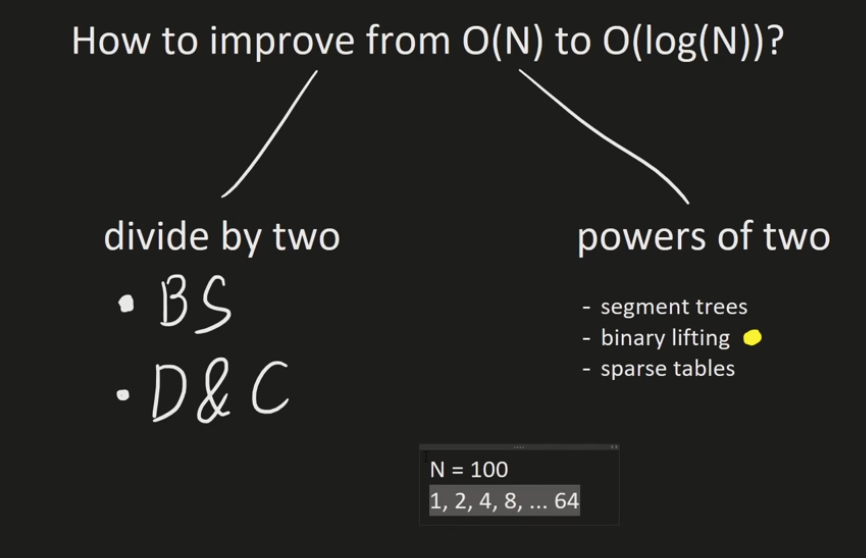

Binary Lifting

With Binary tree lifting you can answer questions such as given a tree and a node inn the tree, what is its k-th ancestor.

Brute force is to repeat $k$ times v = parent[v] -> complexity $O(Q * N)$ if we have $Q$ queries and the tree is very deep.

Binary tree lifting is also known as jump pointers. Errihto.

There are $log(n)$ powers of 2.

Preprocessing

Define $u[v][j]$ is the $2^j$ -th ancestor of v.

$u[v][j]$ is the $2^j$ -th ancestor of v. $u[v][0] = parent[v]$ - that is my first parent $u[v][1] = u[u[v][0]][0]$ - what is my second parent? first parent of my first parent $u[v][2] = u[u[v][1]][1]$ - what is my fourth parent? second parent of my second parent

u is a map that tells me for each node what is the 1st, 2nd, 4th, 8th ... ancestor.

# parent[i] if the parent of node i
log = len(bin(n))
parent[0] = 0 # root
for i in range(len(parent)):
    up[i][0] = parent[i]
for j in range(1,log):
    for i in range(n):
        up[i][j] = up[up[i][j-1]][j-1]

def getKthAncestor(node: int, k: int) -> int:
    # if depth[node] < k: return -1
    for j in range(log):
        if k & (1<<j):
            node = up[node][j]
    return node

careful with for loops, you might need $parent[i] < i$ to do preprocessing (computing) matrix $u$ (depending on your loop order).

Kth ancestor

Complexity: $O(nlog(n))$ on preprocessing and $O(log(n))$ per query.

Lowest Common Ancestor - Binary Lifting

Lowest common ancestor For queries with nodes $(u,v)$ we want to get the lowest common ancestor of $u$ and $v$ .

Idea: Run dfs, record for each nodes timein and timeout. This helps to answer if $u$ is ancestor ov $v$ or vice versa.

Start from the top $up[u][L]$ = the highest ancestor of $u$ . Decrement $L$ checking if $up[u][i]$ is ancestor of $v$ . Goal is to find highest ancestor of u which is not ancestor of $v$ , return $up[u][0]$ .

CODE

def is_ancestor(p,q):
    return timein[p] <= timein[q] and timeout[p] >= timeout[q]

def lca(p,q):
    if is_ancestor(p,q): return p
    if is_ancestor(q,p): return q
    for i in range(l-1,-1,-1):
        if not is_ancestor(up[p][i],q):
            p = up[p][i]
    return up[p][0]

def dfs(root,p):
    nonlocal time
    if not root: return
    timein[root] = time
    time += 1
    up[root] = [None]*l
    up[root][0] = p
    for i in range(1,l):
        up[root][i] = up[up[root][i-1]][i-1]
    dfs(root.left, root)
    dfs(root.right, root)
    timeout[root] = time

time,l = 0,20 # supports 2**19 nodes
up,timein,timeout = {},{},{}
dfs(root,root)

print(lca(p,q)) # lowest common ancestor in O(log(n))

Problem where you need to use optimised LCA:

queries in tree

longest good segement

semi brute force, for each index i (starting index), find largest good segment
$O(n^2)$

CODE

def solve(nums,N,K,S):
    def compute(i):
        seg,curr,j = 1,nums[i],i+1
        while seg <= K and j<N:
            if curr + nums[j] > S:
                curr = 0
                seg += 1
            curr += nums[j]
            j += 1
        return j-i-(seg>K)
    return max(compute(i) for i in range(N))

binary lifting = jumps

CODE


def build(N,start_index):
    up = [[None]*N for _ in range(20)]
    up[0] = start_index
    for i in range(1,20):
        for j in range(N):
            p = up[i-1][j]
            if p == -1:
                up[i][j] = -1
            else:
                up[i][j] = up[i-1][p]
    return up

def call(up, node, K):
    last,jump = node,1
    for i in range(19):
        if node == -1: break
        if K & jump:
            node = up[i][node]
        jump <<= 1
    return last-node

def solve2(nums,N,K,S):
    start_index,j,curr = [],0,0
    for i in range(N):
        curr += nums[i]
        while curr > S:
            curr -= nums[j]
            j += 1
        start_index.append(j-1)

    up = build(N,start_index)
    res = 0
    for i in range(N-1,-1,-1):
        res = max(res, call(up,i,K))
    return res

#QED

Lowest Common Ancestor - Farach-Colton and Bender algorithm

Solve RMQ by finding LCA

Lowest Common Ancestor - Tarjan's off-line algorithm

Maximum flow - Ford-Fulkerson and Edmonds-Karp
Maximum flow - Push-relabel algorithm
Maximum flow - Push-relabel algorithm improved
Maximum flow - Dinic's algorithm
Maximum flow - MPM algorithm
Flows with demands
Minimum-cost flow
Assignment problem
- [min XOR sum](https://leetcode.com/problems/minimum-xor-sum-of-two-arrays/)
- hungarian algo?

Matchings and related problems Bipartite Graph Check Kuhn's Algorithm - Maximum Bipartite Matching

Miscellaneous

Topological Sorting

For DAGs only. Topo sort exists only if there are no cycles in the DAG.

use dfs
after you have exosted vertex s, append it as all its descendants have been visited.
think of exit/finish times
need to reverse answer in the end
below version we also track if there is a cycle

CODE

def dfs(s,path):
    nonlocal cycle
    visited.add(s)
    for u in adj[s]:
        if u not in visited:
            dfs(u,path|{s})
        elif u in path:
            cycle = True
            return
    res.append(s) # all topo sort needs, the rest are for cycle tracking
cycle,res,visited = False,[],set()
for s in range(n):
    if s not in visited:
        dfs(s,set([s]))
if cycle: print([])
print(res[::-1])
